Ford Ranger 2025 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located behind the cover on the left side of the steering column.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

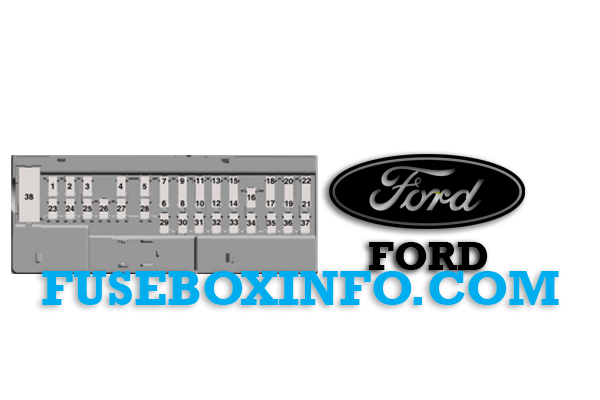

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 10A | Inverter, Door lock switch, Power window switch |
| 3 | 7.5A | Wireless accessory charging module |
| 4 | - | Not used |
| 5 | - | Not used |
| 6 | 10A | Alarm horn, Battery backup sounder |
| 7 | 10A | Not used (spare) |
| 8 | 5A | Telematics modem |
| 9 | - | Not used |
| 10 | - | Not used |
| 11 | - | Not used |
| 12 | 7.5A | Climate control module, Gear shift module, Enhanced central gateway module |
| 13 | 7.5A | Steering column control module, Instrument panel |
| 14 | - | Not used |
| 15 | 15A | On board diagnostic connector, SYNC |
| 16 | - | Not used |
| 17 | 7.5A | Adaptive front lighting module |
| 18 | 7.5A | Auxiliary switch |
| 19 | 5A | Headlamp switch pack |
| 20 | 5A | Ignition switch, Push button switch |
| 21 | 5A | Not used (spare) |
| 22 | 5A | Not used (spare) |
| 23 | 30A | Not used (spare) |
| 24 | 30A | Moonroof |
| 25 | 20A | Not used (spare) |
| 26 | 30A | Not used (spare) |
| 27 | 30A | Not used (spare) |
| 28 | 30A | Not used (spare) |
| 29 | 15A | Display |
| 30 | - | Not used |
| 31 | 10A | Terrain management switch, Integrated control module, Radio frequency receiver module |
| 32 | 20A | Audio control module |
| 33 | - | Not used |
| 34 | - | Not used |
| 35 | - | Not used |
| 36 | 15A | Parking aid module |
| 37 | 20A | Electrochromatic mirror, Steering wheel control module |
| 38 | - | Not used |

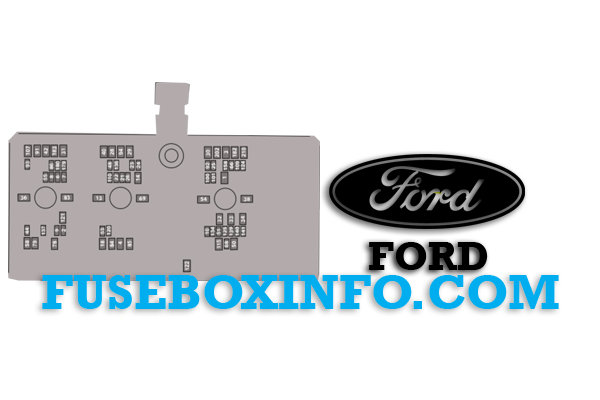

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Body control module 1 |
| 2 | 20A | Crankcase ventilation heater (2.0L, 3.0L diesel) |
| 3 | 30A | Body control module 2 |
| 4 | 30A | Fuel pump |
| 5 | - | Not used |
| 6 | 25A | Powertrain control module power |
| 7 | 30A | Exhaust gas recirculation bypass valve (3.0L diesel), Vacuum solenoid valve (2.0L) |
| 8 | 20A | Heater positive crankcase ventilation valve (3.0L diesel), Variable oil pump (3.0L diesel), Active grille shutter motor, Cooling fan relays, A/C clutch solenoid, Auxiliary water pump, Aspirate valve control |
| 9 | 20A | Glow plug control module (diesel), Particulate matter sensor (diesel), Nitrogen oxide sensor (diesel), 4x4 relay coil |
| 10 | 20A | Fuel volume control valve (3.0L diesel), Transmission control module |
| 11 | - | Not used |
| 12 | - | Not used |
| 13 | 40A | Front blower motor |
| 14 | 20A | Automatic transmission fluid pump (diesel) |
| 15 | - | Not used |
| 16 | - | Not used |
| 17 | - | Not used |
| 18 | 30A | Starter motor |
| 19 | - | Not used |
| 20 | - | Not used |
| 21 | 10A | Automatic headlamp leveling |
| 22 | - | Not used |
| 23 | 10A | Anti-lock brake system module |
| 24 | 10A | Powertrain control module, Glow plug control module (2.0L , 3.0L diesel), Electronic power assist steering |
| 25 | 20A | Driveline control module, Rear camera |
| 26 | 15A | Transmission control module, Transmission oil pump, Automatic transmission fluid pump (diesel) |
| 27 | - | Not used |
| 28 | 60A | Anti-lock brake system valves |
| 29 | 60A | Anti-lock brake system pump |
| 30 | 40A | Left-hand power seat |
| 31 | 40A | Right-hand power seat |
| 32 | 20A | Power point - first row |
| 33 | 20A | Power point - rear console |
| 34 | 20A | Rear cargo power outlet - bedliner power point |
| 35 | - | Not used |
| 36 | 60A | Inverter |
| 37 | - | Not used |
| 38 | 40A | Heated seats control module |
| 39 | - | Not used |
| 40 | 30A | Not used (spare) |
| 41 | - | Not used |
| 42 | 30A | Not used (spare) |
| 43 | - | Not used |
| 44 | 10A | Brake switch |
| 45 | - | Not used |
| 46 | - | Not used |
| 47 | - | Not used |
| 48 | 30A | Not used (spare) |
| 49 | - | Not used |
| 50 | 40A | Heated backlite |
| 51 | 15A | Not used (spare) |
| 52 | - | Not used |
| 53 | 15A | Rear electronic differential lock |
| 54 | 40A | Driveline control module |
| 55 | 30A | Trailer tow park lamp |
| 56 | - | Not used |
| 57 | - | Not used |
| 58 | 15A | Trailer tow backup lamp |
| 59 | - | Not used |
| 60 | - | Not used |
| 61 | - | Not used |
| 62 | - | Not used |
| 63 | - | Not used |
| 64 | - | Not used |
| 65 | - | Not used |
| 66 | 10A | Not used (spare) |
| 67 | - | Not used |
| 68 | 20A | Not used (spare) |
| 69 | 30A | Wiper motor |
| 70 | - | Not used |
| 71 | - | Not used |
| 72 | - | Not used |
| 73 | - | Not used |
| 74 | - | Not used |
| 75 | - | Not used |
| 76 | - | Not used |
| 77 | - | Not used |
| 78 | - | Not used |
| 79 | - | Not used |
| 80 | - | Not used |
| 81 | - | Not used |
| 82 | - | Not used |
| 83 | 50A | Not used (spare) |
| 84 | 50A | Not used (spare) |
| 85 | 50A | Not used (spare) |
| 86 | 15A | Selective catalytic reduction system heater 2 (2.0L, 3.0L diesel) |
| 87 | - | Not used |
| 88 | - | Not used |
| 89 | - | Not used |
| 90 | - | Not used |
| 91 | 40A | Trailer tow module |
| 92 | 10A | Accessory |
| 93 | 5A | Not used (spare) |
| 94 | 20A | Not used (spare) |
| 95 | - | Not used |
| 96 | - | Not used |
| 97 | - | Not used |
| 98 | - | Not used |
| 99 | - | Not used |
| 100 | 20A | Left-hand headlamps |
| 101 | 20A | Right-hand headlamps |
| 102 | - | Not used |
| 103 | - | Not used |
| 104 | - | Not used |
| 105 | - | Not used |
| 106 | - | Not used |
| 107 | 30A | Trailer tow module - battery charger |
| 108 | - | Not used |
| 109 | 20A | Not used (spare) |
| 110 | 30A | Trailer tow auxiliary |
| 111 | - | Not used |
| 112 | - | Not used |
| 113 | - | Not used |
| 114 | - | Not used |
| 115 | 30A | Power roller shutter |
| 116 | - | Not used |
| 117 | - | Not used |
| 118 | - | Not used |
| 119 | - | Not used |
| 120 | 10A | Fuel injectors (2.7L) |
| 121 | 40A | Water in fuel heater (diesel) |
| 122 | 30A | Transfer case control module |
| 123 | - | Not used |
| 124 | 5A | Rain sensor |
| 125 | 10A | Not used (spare) |
| 126 | - | Not used |
| 127 | - | Not used |
| 128 | - | Not used |
| 129 | - | Not used |
| 130 | - | Not used |
| 131 | - | Not used |
| 132 | - | Not used |
| 133 | - | Not used |
| 134 | 25A | Not used (spare) |
| 135 | - | Not used |
| 136 | - | Not used |
| 137 | 20A | Advanced driver assistance system |
| 138 | - | Not used |
| 139 | 5A | Not used (spare) |
| 140 | 5A | USB smart charge port - rear console |
| 141 | 5A | USB smart charge port - top |
| 142 | - | Not used |
| 143 | - | Not used |
| 145 | - | Not used |
| 146 | - | Not used |
| 147 | - | Not used |
| 148 | - | Not used |
| 149 | - | Not used |
| 150 | - | Not used |
| 151 | - | Not used |
| 152 | - | Not used |
| 153 | - | Not used |
| 154 | - | Not used |
| 155 | - | Not used |
| 156 | - | Not used |
| 157 | - | Not used |
| 158 | 10A | Not used (spare) |
| 159 | - | Not used |
| 160 | - | Not used |
| 161 | - | Not used |
| 162 | - | Not used |
| 163 | - | Not used |
| 164 | - | Not used |
| 165 | - | Not used |
| 166 | - | Not used |
| 167 | - | Not used |
| 168 | - | Not used |
| 169 | - | Not used |
| 170 | - | Not used |
| 171 | - | Not used |
| 172 | - | Not used |
| 173 | - | Not used |
| 174 | - | Not used |
| 175 | - | Not used |
| 176 | - | Not used |
| 177 | - | Not used |
| 178 | - | Not used |
| 179 | 15A | Selective catalytic reduction system heater 1 (diesel) |
| 180 | 10A | Selective catalytic reduction system heater 3 (diesel) |
| 181 | - | Not used |
| 182 | 60A | Drive door module |
| 183 | 60A | Passenger door module |
| 192 | - | Not used |
| 202 | 60A | Body control module B+ |
| 210 | 30A | Body control module start-stop |
Battery fuse box (located on the battery):
| Fuse/Relay N° | Rating | Functions |
| 1 | 3A | Battery Monitoring System |
