Ford Escape 2023 Fuse Box Info

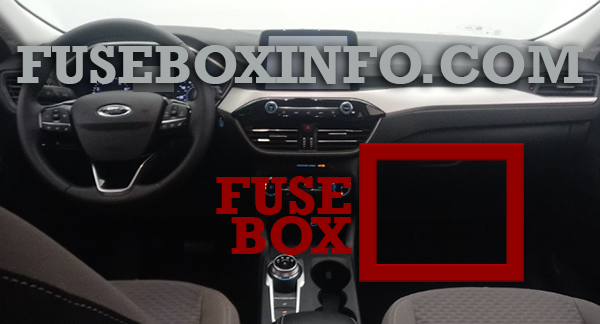

Passenger compartment fuse box location:
The fuse panel is located on the right side below the glove box.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

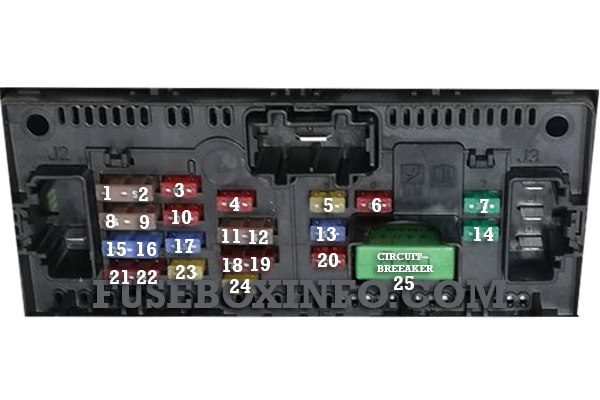

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Not used (spare) |
| 2 | 5A | Not used (spare) |
| 3 | 10A | Not used (spare) |
| 4 | 10A | Integrated control panel, Gateway module |
| 5 | 20A | Lock, Unlock |
| 6 | 10A | Moonroof |
| 7 | 30A | Passenger door module |
| 8 | 5A | All-Wheel Drive module |
| 9 | 5A | Electrochromatic mirror |
| 10 | 10A | Extended power module |
| 11 | 5A | Power liftgate, Hands-free liftgate actuation module, Telematics control unit module |
| 12 | 5A | Keyless keypad switch |
| 13 | 15A | Driver door unlock |
| 14 | 30A | Driver door module |
| 15 | 15A | Extended power module |
| 16 | 15A | Not used (spare) |
| 17 | 15A | SYNC, Receiver transceiver module |
| 18 | 7.5A | Wireless accessory charging module |
| 19 | 7.5A | Headlamp switch pack |
| 20 | 10A | Not used (spare) |
| 21 | 7.5A | Climate control, E-shifter module, Ignition switch |
| 22 | 7.5A | Instrument cluster, Steering column control module |
| 23 | 20A | Audio unit |
| 24 | 20A | Not used (spare) |
| 25 | 30A | Power windows, Exterior mirrors |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | - | Not used |
| 4 | 60A | Supplemental heater (gas) |
| 5 | 40A | Supplemental heater (gas) |
| 6 | 40A | Supplemental heater (gas) |
| 7 | - | Not used |
| 8 | - | Not used |
| 9 | - | Not used |
| 10 | 30A | Starter motor |
| 11 | 15A | Powertrain control module |
| 12 | 15A | Powertrain control module |
| 13 | 15A | Powertrain control module |
| 14 | 15A | Powertrain control module |
| 15 | - | Not used |
| 16 | - | Not used |
| 17 | - | Not used |
| 18 | 10A | Powertrain control module |
| 19 | 10A | Anti-lock brake system module |
| 20 | - | Not used |
| 21 | 5A | Not used (spare) |
| 22 | 5A | Battery electronic control module (hybrid electric vehicle) |
| 23 | 5A | Charge port light ring (plugin hybrid electric vehicle) |
| 24 | 20A | Amplifier |
| 25 | - | Not used |
| 26 | - | Not used |
| 27 | - | Not used |
| 28 | 10A | Brake on-off switch |
| 29 | 5A | Powertrain control module (hybrid electric vehicle) |
| 30 | 10A | Electronic stability control (gas), Transmission oil pump (hybrid electric vehicle). |
| 31 | 5A | Electronic power assist steering |
| 32 | 30A | Body control module |
| 33 | 10A | Front parking aid camera, Rear view camera, Blind spot information system, Adaptive cruise control |
| 34 | 10A | Not used (spare) |
| 35 | 15A | Heated steering wheel |
| 36 | 10A | Powertrain control module (hybrid electric vehicle) |
| 37 | 20A | Horn |
| 38 | 40A | Blower motor |
| 39 | - | Not used |
| 40 | - | Not used |
| 41 | 20A | Amplifier |
| 42 | 30A | Driver power seat |
| 43 | 50A | Electric water pump (hybrid electric vehicle) |
| 44 | 40A | Trailer tow module |
| 45 | 30A | Passenger power seat |
| 46 | 20A | Not used (spare) |
| 47 | 20A | Heated seats |
| 48 | 40A | Anti-lock brake control valves |
| 49 | 60A | Anti-lock brake control pump |
| 50 | 60A | Cooling fan |
| 51 | 30A | Moonroof |
| 52 | 5A | DC/DC converter (hybrid electric vehicle) |
| 53 | 10A | Battery charge control module (hybrid electric vehicle) |
| 54 | - | Not used |
| 55 | - | Not used |
| 56 | - | Not used |
| 57 | 10A | Data link connector |
| 58 | 40A | Auxiliary power distribution box (hybrid electric vehicle) |
| 59 | 40A | Body control module |
| 60 | 5A | USB smart charger |
| 61 | 20A | Rear cargo power point |
| 62 | - | Not used |
| 63 | 30A | Not used (spare) |
| 64 | 30A | Power liftgate |
| 65 | - | Not used |
| 66 | - | Not used |
| 67 | - | Not used |
| 68 | 5A | Mass air flow and intake air temperature sensor (gas) |
| 69 | 15A | Port fuel injectors |
| 70 | 20A | Rear console power point |
| 71 | 20A | Media bin power point |
| 72 | 20A | Rear window wiper |
| 73 | - | Not used |
| 74 | 30A | Windshield wiper motor |
| 75 | 10A | Heated exterior mirrors |
| 76 | 30A | Heated backlight |
| 77 | - | Not used |
| 78 | 10A | Air conditioning clutch |
| 79 | - | Not used |
| 80 | 20A | Fuel pump |
| 81 | 10A | Rear window washer pump |
| 82 | 40A | Power inverter |
| 83 | - | Not used |
| 84 | 40A | Driveline control module |
| 85 | 5A | Rain sensor |
| 86 | - | Not used |
| 87 | - | Not used |
| 88 | - | Not used |
