Dodge Durango 2023 Fuse Box Info

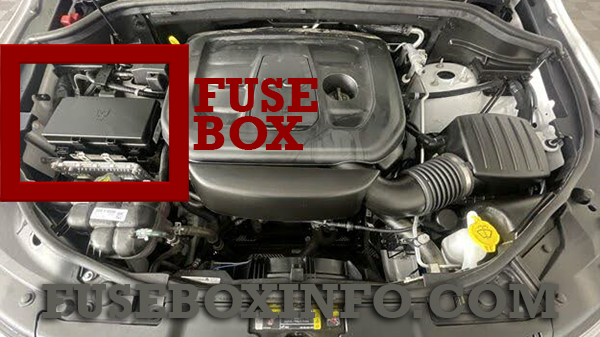

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Spare |
| 02 | - | Spare |
| 03 | 60A | Rad Fan* |
| 04 | 60A | ESP Pump Non-SRT |
| 05 | 40A | Air Suspension Comp* |
| 06 | 40A | ABS Pump SRT |
| 07 | 40A | Starter Solenoid |
| 08 | - | Spare |
| 09 | 30A | Diesel Fuel Htr* / VAC PUMP* |
| 10 | 40A | CBC #2 / EXT Light |
| 11 | 30A | Trlr Tow Brake* |
| 12 | 40A | CBC #3 / Pwr Locks |
| 13 | 40A | HVAC BLWR MTR |
| 14 | 40A | CBC #4 / Ext Light |
| 15 | 40A | LTR Engine Cooling* |
| 16 | - | Spare |
| 17 | 30A | HDLP Washers* |
| 18 | - | Spare |
| 19 | 20A | Solenoid Headrest* |
| 20 | 30A | Pass Door Mod |
| 21 | - | Spare |
| 22 | 20A | ECM* / PCM* |
| 23 | 30A | CBC #1 / Int Light |
| 24 | 30A | Driver Door Mod |
| 25 | 30A | Ft Wiper |
| 26 | 30A | ESP / ECU Valves |
| 27 | - | Spare |
| 28 | 20A | Trlr Tow B/U* |
| 29 | 20A | Trlr Tow Park* |
| 30 | 30A | Trlr Tow Pwr* |
| 31 | - | Spare |
| 32 | 30A | DTCM |
| 33 | - | Spare |
| 34 | 30A | ELSD* |
| 35 | 30A | Sunroof* |
| 36 | 30A | EBL |
| 37 | 25A | HVAC RR Blower MTR* |
| 38 | 30A | Power Inverter |
| 39 | 30A | PLG |
| 40 | 10A | DRL/ HEADLAMP LVL* |
| 41 | - | Spare |
| 42 | 20A | Horn |
| 43 | - | Spare |
| 44 | 10A | Diagnostic Port |
| 45 | 5A | Cyber Security MOD |
| 46 | - | Spare |
| 47 | - | Spare |
| 48 | - | Spare |
| 49 | 10A | ICS / HVAC |
| 50 | 20A | Air Suspension Mod* / ELSD* |
| 51 | 15A | KIN / RF HUB / ESCL* |
| 52 | - | Spare |
| 53 | 20A | Trlr Tow LT Turn / Stop* |
| 54 | - | Spare |
| 55 | - | Spare |
| 56 | 15A | PCM* |
| 57 | 20A | NOX Snsrs* / PM Snsrs* / Fuel HTR* |
| 58 | 15A | HID Headlamps LH* |
| 59 | 10A | SCR Pump Relay* |
| 60 | 15A | TCM |
| 61 | 10A | PM Sensor* |
| 62 | 10A | A/C Clutch |
| 63 | 20A | Ignition Coils*/ Ignition Coil Capacitors* |
| 64 | 25A | Fuel Injectors / ECM |
| 65 | - | Spare |
| 66 | 10A | Sunroof*/ LRSM*/ RVM / DSRC / USB Port / DTV* / WCP* |
| 67 | 15A | CDM/UCI Port/USB Port |
| 68 | 20A | RR Wiper Mtr |
| 69 | 15A | Spot Light Feed |
| 70 | 20A | Fuel Pump Mtr |
| 71 | 30A | Amplifier*/ ANCM* |
| 72 | 10A | ECM* / PCM* |
| 73 | 15A | HID Headlamp RH* |
| 74 | - | Spare |
| 75 | 10A | Dual Batt Ctrl* |
| 76 | 10A | ESP |
| 77 | 10A | DTCM / ELSD* |
| 78 | 10A | ECM / PCM* / EPS |
| 79 | - | Spare |
| 80 | 10A | UGDO |
| 81 | 20A | Trlr Tow RT Turn / Stop* |
| 82 | 10A | SCCM / Cruise Control / DTV* |
| 83 | 10A | Fuel Door |
| 84 | 15A | Cluster |
| 85 | 10A | ORC (Airbag) |
| 86 | 10A | ORC (Airbag) |
| 87 | 10A | Air Suspension Mod* |
| 88 | 15A | Cluster / CSG* / ITBM* |
| 89 | - | Soare |
| 90 | - | Spare |
| 91 | 20A | Pwr Outlet Cargo Area |
| 92 | 10A | Rr Console Lamp* / RR Pwr Outlet |
| 93 | 20A | Cigar Lighter |
| 94 | 10A | Sbw / Tcase Sw |
| 95 | 10A | Rr Cam / Blind Spot Snsr* |
| 96 | 10A | Rr Seat Heater Sw* |
| 97 | 20A | Rr Htd Sts / Htd Str Wheel* |
| 98 | 20A | Front Htd Sts* / Vent Sts |
| 99 | 10A | Hvac / Dash / Hlfm/ Prktronx |
| 100 | 10A | Active Damping* |
| 101 | 15A | In Car Temp Sensor / Humidity Sensor |
| 102 | 15A | Spare |
| 103 | 10A | PTC / RR HVAC* |
| 104 | 20A | PWR OUT-IP / Console / Trnk |
* If Equipped
