Dodge Dart 2016 Fuse Box Info

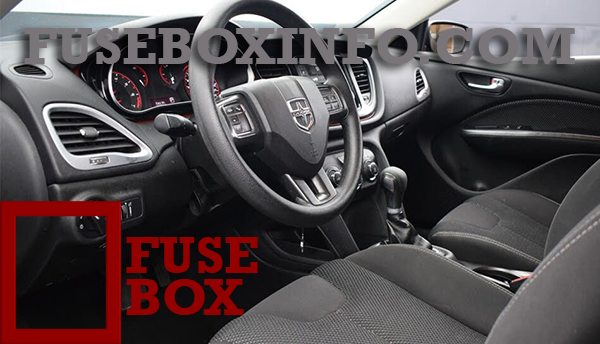

Passenger compartment fuse box location:
The Interior fuse box and Body Control Module (BCM) are located on the drivers side under the instrument panel.

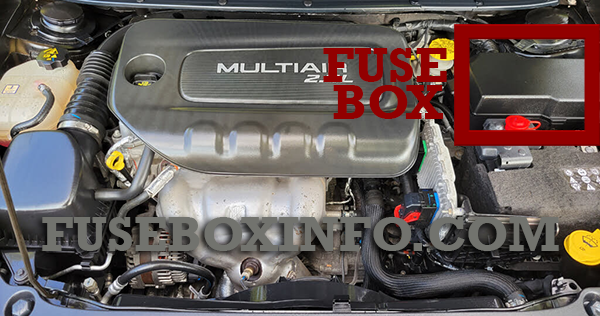

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Front Heated Seats – If Equipped |
| 2 | 20A | Rear Heated Seats, Heated Steering Wheel – If Equipped |
| 3 | 10A | Park Assist Module, Rear Camera, Left and Right Blind Spot Sensor, Compass – If Equipped |
| 4 | 15A | Instrument Cluster |
| 5 | 10A | HVAC, Humidity Sensor, In-Car Temperature Sensor, Inside Mirror Assembly |
| 18 | 15A | Radio |
| 20 | 10A | Steering Column Control Module, Switch Bank |
| 21 | 10A | Diagnostic Port |
| 22 | 10A | Universal Garage Door Opener, EOM |
| 23 | 20A | Sunroof |
| 24 | 5A | Run/Accessory Relay |
| 25 | 5A | Transmission Control Module #4 |
| 26 | 5A | Stop Lamp Switch |
| 27 | 10A | Pneumatic Lumbar Support |
Passenger compartment fuse box (Body Control Module (BCM)):
| Fuse/Relay N° | Rating | Functions |
| 12 | - | Spare |
| 13 | 15A | Left Headlamp |
| 31 | - | Spare |
| 32 | 10A | Interior Lighting/Decklid/Liftgate Release |
| 33 | 25A | Window Motor – Driver |
| 34 | 25A | Window Motor – Passenger |
| 36 | 15A | Intrusion Module |
| 37 | 10A | Instrument Panel Cluster |
| 38 | 20A | Door Locks |
| 42 | - | Spare |
| 43 | 20A | Windshield Washer Pump |
| 47 | 5A | Transmission Control Module (Tcm) |
| 48 | 20A | Spare |
| 49 | 7.5A | Stop Lamp Switch |
| 50 | 7.5A | Pneumatic Lumbar Support |
| 51 | 7.5A | Cd/Hands-Free Module – Bluetooth/ Radio Display |
| 53 | 7.5A | Driver Window Switch/Power Mirrors |
| 89 | 5A | Trunk Lamp |
| 90 | 7.5A | Front Fog Lamps – Right |
| 91 | 7.5A | Front Fog Lamps – Left |
| 92 | 7.5A | High Beams (Shutters) |
| 93 | 15A | Right Headlamp |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | 70A | Body Control Module #1 |
| 02 | 60A | Body Control Module #2 |
| 03 | 30A | Output For Starter Relay #1 |
| 04 | 40A | ESP Pump Motor |
| 05 | 40A | Transmission Control Module #1 |
| 06 | 30A | Body Control Module #3 |
| 07 | 40A | EBL RLY Coil, Blower Motor RLY Coil |
| 09 | 5A | Radiator Fan |
| 10 | 10A | ORC |
| 11 | 20A | Run/Start, Engine Control Module |
| 14 | 15A | Transmission Control Module #2 |
| 15 | 15A | Transmission Control Module #3 |
| 16 | 15A | Engine Control Module, Ignition Coils |
| 17 | 15A | Brake System Module |
| 18 | 20A | Engine Control Module |
| 19 | 10A | A/C Compressor Clutch |
| 20 | 30A | Rear Defroster (EBL) |
| 21 | 20A | Fuel Pump |
| 22 | 10A | Occupant Restraint Controller |
| 23 | 25A | Brake System Module |
| 24 | 20A | Engine Control Module, Fuel Injectors |
| 30 | 20A | Power Outlet (Console) |
| 81 | 60A | Interior PDC Battery Feed, Power Seats |
| 82 | 30A | Amplifier |
| 83 | 40A | HVAC Blower Motor |
| 84 | 20A | Cigar Lighter |
| 85 | 10A | Sunroof, LRSM, Power Outlet (Console), UCI/AUX Port, Cigar Lighter |
| 86 | 20A | - |
| 87 | 10A | Wastegate, Purge Solenoid, OBD Vent Valve, Oxygen Sensor Heaters |
| 88 | 10A | Heated Outside Mirrors |
