Peugeot 307 2005 Fuse Box Diagram
Fuse box location:
The fuse box are placed in the lower part of the fascia.
Engine compartment fusebox:
The fusebox is placed in the engine compartment near the battery.
Fuse Box Diagram | Layout
Dashboard fuses:
| Fuse N° | Rating | Functions |
| 1 | 15 A | Rear wiper. |
| 2 | 30 A | Locking and deadlocking. |
| 3 | 5 A | Air bags and pre-tensioners unit. |
| 4 | 10 A | Brake (STOP) and clutch pedal switches,engine coolant level switch, steering wheel angle sensor, ESP dual-function sensor, particle emission filter pump, diagnostic socket,electrochromatic mirror. |
| 5 | 30 A | Front electric windows, sunroof, heated mirrors. |
| 6 | 30 A | Rear electric windows. |
| 7 | 5 A | Front and rear courtesy lights, map reading lights, glove box lighting. |
| 8 | 20 A | Audio equipment, audio/telephone, multifunction display, alarm siren, alarm unit, 12 V rear socket, trailer fuse box, driving school module. |
| 9 | 30 A | 12 V front socket. |
| 10 | 15 A | Automatic gearbox control unit, tyre under-inflation control unit, STOP switch. |
| 11 | 15 A | Diagnostic socket, particle emission filter unit, low current ignition switch. |
| 12 | 15 A | Driving school module. |
| 13 | 5 A | Engine fuse box, rain and brightness sensor. |
| 14 | 15 A | Trailer fuse box, instrument panel, air bags unit, automatic air conditioning, hands-free kit. |
| 15 | 30 A | Locking and deadlocking. |
| 16 | - | PARC shunt. |
| 17 | 40 A | Heated rear screen. |

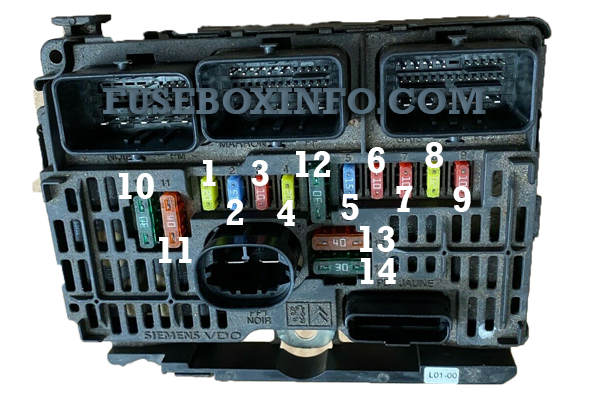

Engine compartment fusebox:
OR
| Fuse N° | Rating | Functions |
| 1 | 20 A | Engine control unit and fan assembly high speed relay supply. |
| 2 | 15 A | Horn. |
| 3 | 10 A | Front and rear wash-wipe. |
| 4 | 20 A | Headlamp wash. |
| 5 | 15 A | Fuel pump and purge canister solenoid valve. |
| 6 | 10 A | Automatic gearbox control unit, automatic gearbox lever locking control, push control switch, fan assembly high speed relay. |
| 7 | 10 A | ABS/ESP control unit, power steering electro-pump unit control unit. |
| 8 | 20 A | Ignition switch. |
| 9 | 10 A | Additional heating unit (Diesel), coolant level switch. |
| 10 | 30 A | Engine control unit actuators (ignition coil, solenoid valves, oxygen sensors, control units, injectors, heaters). |
| 11 | 40 A | Air conditioning blower. |
| 12 | 30 A | Windscreen wipers low/high speed. |
| 13 | 40 A | Built-in systems interface supply (ignition positive). |
| 14 | 30 A | Air pump (2 litre petrol). |
| 15* | 10 A | Right main beam headlamp. |
| 16* | 10 A | Left main beam headlamp. |
| 17* | 15 A | Left dipped headlamp. |
| 18* | 15 A | Right dipped headlamp. |
* For fuse box 1 only.
Maxi fuses:
| Fuse N° | Rating | Functions |
| 1 |
50 A 30 A |
400 W and 460 W fan unit. 200 W fan unit. |
| 2 | 30 A | ESP/ABS pump motor. |
| 3 | 30 A | ESP/ABS solenoid valves. |
| 4 | 80 A | Built-in Systems Interface supply. |
| 5 | 80 A | Built-in Systems Interface supply. |
| 6 | 80 A | Passenger compartment fuse box. |
| 8 | 70 A | Power steering electro-pump unit. |
