Chery Tiggo 8 Pro 2023 Fuse Box

Chery Tiggo 8 Pro 2023 Fuse Box Info

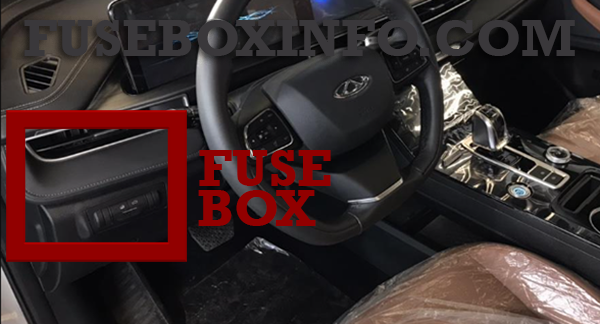

Passenger compartment fuse box location:

The fuse box is located on the lower left side of instrument panel.

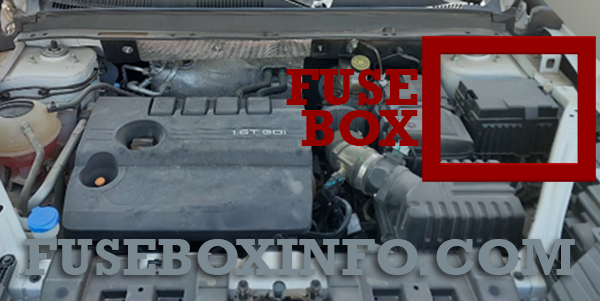

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box - Version 1 (T1D 1.6T+7DCT):

Fuse/Relay N° Functions
RF01 BCM & Instrument Panel & PEPS & Gateway
RF02 -
RF03 EPS & Angle Sensor
RF04 Audio
RF05 Airbag Module
RF06 A/C Control Panel & Rear Speed Resistor Panel & Automatic A/C Control Module & Bluetooth Module & T-BOX Module & Instrument Panel Ambient Light & Wireless Charging Module
RF07 A/C Control Panel & Rear Speed Resistor Panel & TCU (7DCT) & T-BOX Module & FIDC Switch & Automatic A/C Control Module & Negative Ion Generator
RF08 Door Ambient Light & Panoramic Controller & Kick sensor & Camera & Driving Recorder
RF09 -
RF10 -
RF11 -
RF12 -
RF13 TCU (CVT25)
RF14 -
RF15 Auxiliary Fasia Console Switch (DCT) & OBD Diagnostic Interface & Spiral Cable & Center Console Switch
RF16 -
RF17 -
RF18 Power Rear View Mirror Motor
RF19 -
RF20 Rrly01 Blower RLY
RF21 PEPS & Gateway & EPB & Shift Switch
RF22 -
RF23 RRLY02 Steering Sheel Heat RLY
RF24 RRLY03 Defoger RLY
RF25 -
RF26 BCM & Audio & Power Rear View Mirror Switch & Mobile Wireless Charging Module
RF27 Spare Power
RF28 USB Charging Module & Driving Recorder Charging Port



Passenger compartment fuse box - Version 2 (T1A 2.0T+CVT25):

Fuse/Relay N° Functions
RF01 Instrument Cluster & BCM & Center Gateway & GLONASS & PEPS
RF02 -
RF03 EPS & Angle Sensor
RF04 -
RF05 Airbag Module
RF06 -
RF07 Auto A/C Control Module & Audio & Adjustment Switch Assembly & Auxiliary Fascia Console Switch Assembly & Gear backlight (CVT25) & Gearshift mechanism (CVT25)
RF08 -
RF09 Radio Contrl Module
RF10 Instrument Cluster & A/C Control Panel (AUTO) & Right Mixing Damper Motor & Left Mixing Damper Motor & Mode Damper Motor & Inner and outer Circulation Motor & GLONASS & T-BOX MODULE
RF11 -
RF12 -
RF13 TCU (CVT25)
RF14 -
RF15 Instrument Panel Ambient Lamp & Auxiliary Instrument Panel Ambient Lamp & Spiral Cable & Center Console Switch & EPB Switch & OBD Diagnose Port & T-box Module
RF16 -
RF17 -
RF18 A/C Control Panel & Power Rear View Mirror Motor
RF19 -
RF20 Rrly 01 Blower RLY
RF21 PEPS & Center Gateway
RF22 -
RF23 RRLY02 steering wheel heat RLY
RF24 RRLY03 DEFROST RLY
RF25 -
RF26 BCM & Radio & Power Rear View Mirror Switch
RF27 Spare Power Supply
RF28 USB Charging Module



Engine compartment fuse box - Version 1 (T1D 1.6T+7DCT):

Fuse/Relay N° Functions
SB01 ISS1
SB02 ACC
SB03 Start control
SB04 -
SB05 BCM2
SB05 BCM1
SB07 ABS/EPS
SB08 ESP (EPB)
SB09 DCT
SB10 PLG
SB11 Seat adjustment
EF01 ERLY 01 vacuum pump RLY
EF02 Oxygen sensor
EF03 Ignition coil
EF04 ECU solenoid valve
EF05 AWD
EF06 AGS & PWM FAN
EF07 AUX Light
EF08 Left Low beam power
EF09 -
EF10 ECU & Start RLY Coil (For ISS)
EF11 -
EF12 -
EF13 ECU & TCU & Brake SW (NC) & FPC 15+
EF14 Compressor Pipe Press Switch & Reverse Radar Module & Sunroof & DVR & Seat Ventilation & AFS & MST & RACP
EF15 AVW & BSD & LDW & AEB & ACC15+
EF16 Rear Blower
EF17 -
EF18 -
EF19 -
EF20 Injector Cyl1.2.3.4
EF21 ISS2
EF22 -
EF23 -
EF24 High beam
EF25 -
EF26 Right Low beam power
EF27 ERLY12 Horn RLY
EF28 ESP & ABS
EF29 ERLY13 Fuel Pump RLY
EF30 BCM6
EF31 IGN1
EF32 Brake SW & BSD
EF33 PLGM & GLP
EF34 BCM5
EF35 BCM3
EF36 FPC
EF37 Spare Power & R BLW RLY COIL
EF38 ECU & DCT 30+
EF39 Wiper RLY
EF40 -
EF41 Seat Heater
EF42 A/C clutch
EF43 -
EF44 BCM4
EF45 Sunroof
EF46 Memory Fuse
EF47 IP Fuse Box power
EF48 EPS power
EF49 ALT power
EF50 Cooling Fan
EF52 FW Heater 2
EF53 FW Heater 1



Engine compartment fuse box - Version 2 (T1A 2.0T+CVT25):

Fuse/Relay N° Functions
SB01 ISS 1
SB02 ACC
SB03 Start control
SB04 -
SB05 BCM 2
SB05 BCM 1
SB07 ESP (EPB)
SB08 ESP (EPB)
SB09 DCT
SB10 PLG
SB11 Seat adjustment SEAT
EF01 ERLY 01 vacuum pump RLY
EF02 Oxigen Sensor
EF03 Ignition coil
EF04 ECU solenoid valve
EF05 -
EF06 Cooling Fan
EF07 -
EF08 Left Low beam power
EF09 -
EF10 ECU & Start RLY Coil (For ISS)
EF11 -
EF12 -
EF13 ECU & TCU & brake SW
EF14 Reverse Radar Module & Sunroof & Seat Control Module & Anti Glare Interior Rear view Mirror & Rear A/C Panel
EF15 360 Camera Module
EF16 Rear Blower
EF17 -
EF18 -
EF19 -
EF20 Injector Cyl1.2.3.4
EF21 ISS 2
EF22 -
EF23 -
EF24 ERLY20 High beam RLY
EF25 -
EF26 Right Low beam power
EF27 ERLY12 horn RLY
EF28 ESP (EPB)
EF29 ERLY13 fuel pump RLY
EF30 BCM6
EF31 IGN (a) & IGN (b)
EF32 Brake Switch & 360 Camera Module
EF33 PLG & Kick Sensor & Door Ambient Lamp
EF34 BCM5
EF35 BCM3
EF36 -
EF37 The Third Spare Power Supply & Trunk Spare power supply
EF38 ECU
EF39 Wiper RLY
EF40 -
EF41 Seat Heater
EF42 ERLY 19 AC clutch RLY
EF43 -
EF44 BCM4
EF45 Sunroof
EF46 IP Fuse Box power
EF47 IP Fuse Box power
EF48 EPS power
EF49 ALT power
EF50 Cooling fan
EF52 FW Heater 2 RLY
EF53 FW Heater 1 RLY
